Patching Wheels

Last year, I wrote about manually Patching a Python Wheel. There was a cyclic dependency between the Torch 2.0.1 wheel and the Triton 2.0.0 wheel. While pip had no problem with this, Bazel certainly did. My workaround was to unzip the Torch wheel, edit the metadata to remove the dependency on Triton, and zip the wheel up again with a modified name.

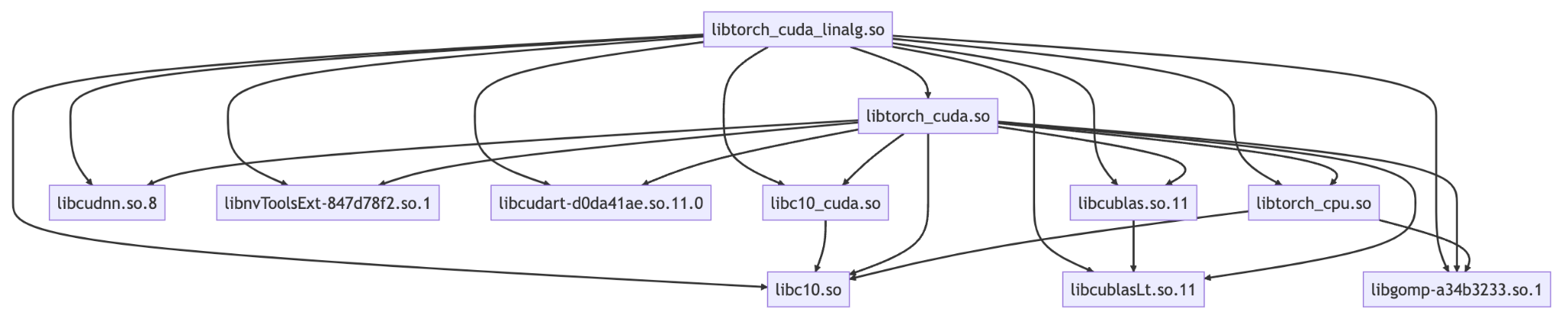

At the beginning of this year, I had to patch Torch 2.1 for different reasons. Again, I needed to patch the Torch wheel because of Bazel problems. Due to the way that Bazel installs each package in a different location, instead of one common site-packages, I had to ensure that Torch preloaded a series of lib*.so extensions in topo­log­i­cal­ly sorted order. This time, I wrote a patcher script to apply patches to a wheel.

The patcher script uses the official wheel package to do most of the work of extracting the contents and packing the new wheel. My torch21 repo gives two examples of how to use patcher.

Splitting Wheels

There are multiple variants of the Torch wheel. The Torch 2.1 wheel with CUDA 11.8, torch==2.1.2+cu118, is 2.5GB, and expands to 4GB! Almost all of that is in shared object libraries (lib/lib*.so), some 3.9GB.

-rwxr-xr-x 1 georgevreilly stripe  125M Dec 12 18:05 libcudnn_adv_infer.so.8
-rwxr-xr-x 1 georgevreilly stripe  241M Dec 12 18:05 libtorch_cuda_linalg.so
-rwxr-xr-x 1 georgevreilly stripe  451M Dec 12 18:05 libtorch_cpu.so
-rwxr-xr-x 1 georgevreilly stripe  548M Dec 12 18:04 libcublasLt.so.11
-rwxr-xr-x 1 georgevreilly stripe  621M Dec 12 18:05 libcudnn_cnn_infer.so.8
-rwxr-xr-x 1 georgevreilly stripe 1355M Dec 12 18:05 libtorch_cuda.so

An internal system that we use for remotely building Bazel actions has a hard limit of 3GB. This is an internal policy, not an inherent Bazel limitation, but it led to dif­fi­cul­ties with building apps that wanted to use the wheel.

My solution was to split the wheel into two wheels, a cudatorch wheel, which contained the two largest libraries, libtorch_cu­da.so (1355MB) and libtorch_cu­d­a_li­nalg.so (241MB), and a modified version of the torch wheel, which contained everything else.

I had to use patchelf to modify the rpath of the two libs in the cudatorch wheel to something like $ORIGIN:$ORIGIN/../../torch/lib.

In the torch wheel, I had to patch torch/__init__.py to preload the cudatorch libs.
